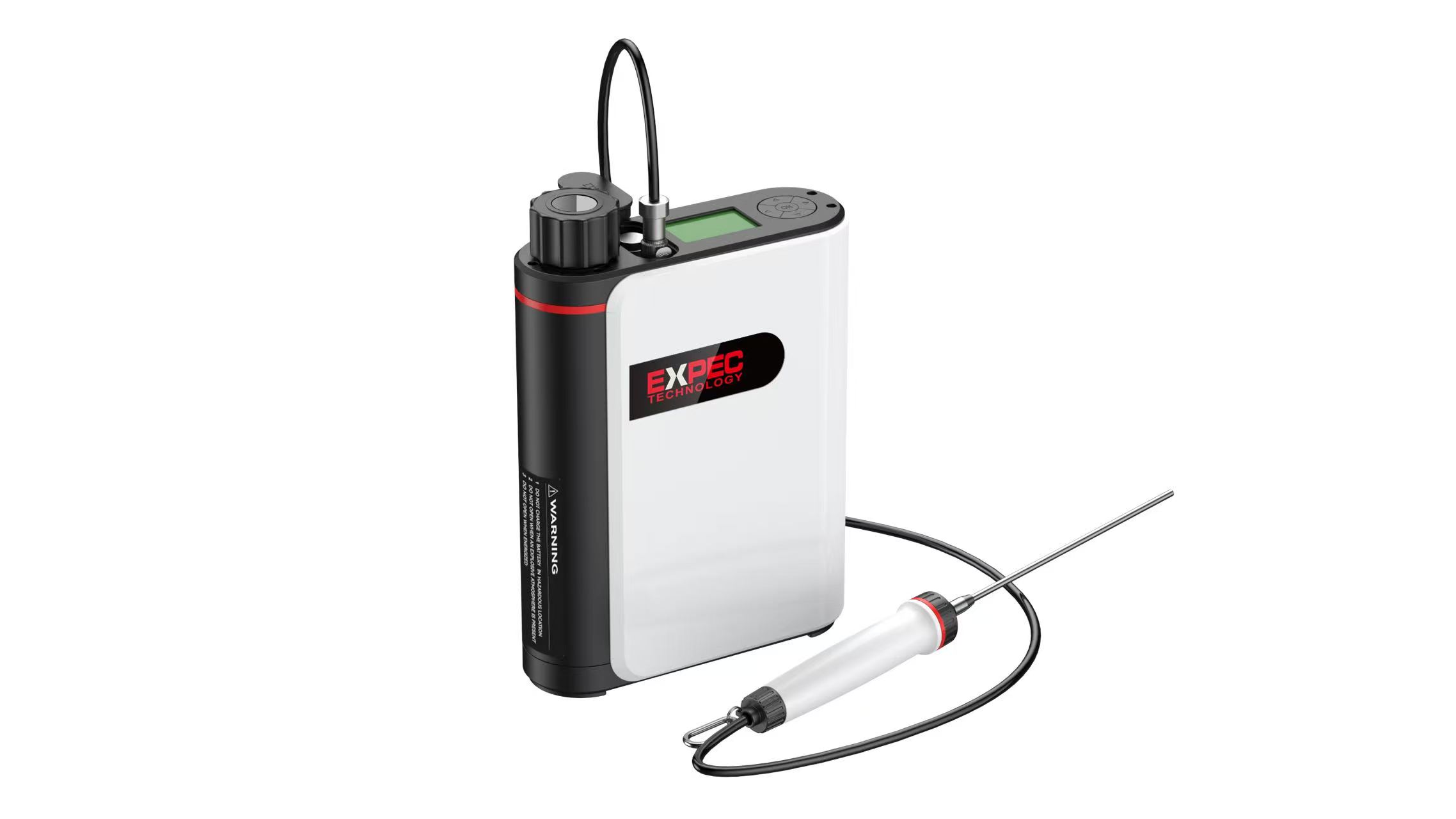

Lightweight, intrinsically safe portable THC detector
EXPEC 3100 Intl is an intrinsically safe, portable field analyzer for total hydrocarbon (THC) measurement, VOCs source tracing, emergency response, and LDAR monitoring of unorganized emissions in petrochemical facilities.
EXPEC 3100 Intl is an intrinsically safe, portable field analyzer for total hydrocarbon (THC) measurement, VOCs source tracing, emergency response, and LDAR monitoring of unorganized emissions in petrochemical facilities.
• Dual FID/PID technology
• Wi-Fi & Bluetooth
• Lightweight: ≤3.7 kg with dual detectors
• Built-in EPC hydrogen control
• Intrinsically safe (IECEx)
The EXPEC 3100 Intl VOC Gas Analyzer is a portable, intrinsically safe instrument designed for THC determination, leak detection, and emergency response. Configured with a Flame Ionization Detector (FID) as standard, with a Photo Ionization Detector (PID) optionally available, it responds to virtually all VOCs and common inorganic gases on-site.

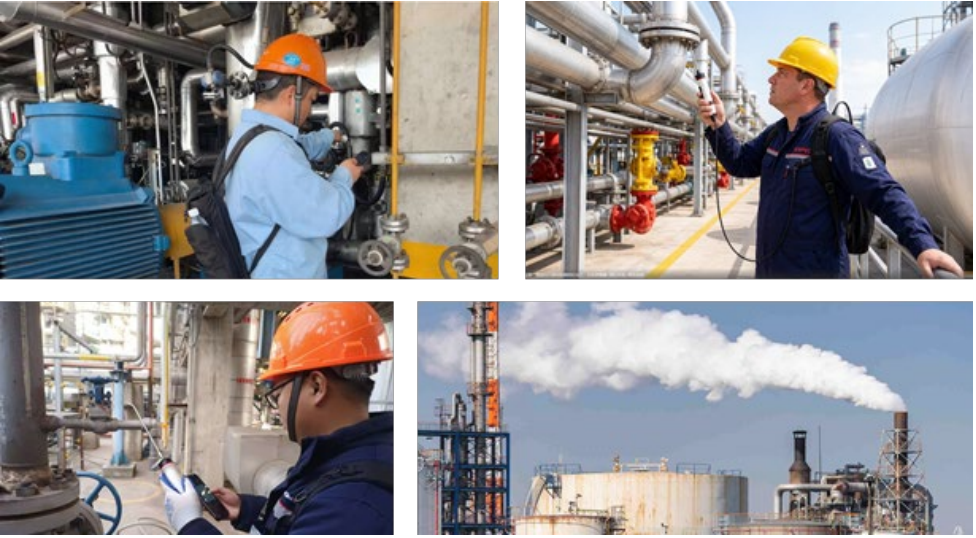

The analyzer serves diverse applications including U.S. EPA Method 21 compliance, LDAR programs, site remediation, fugitive emission surveys, and source tracing in petrochemical, refining, and chemical facilities.
With tightening global regulations—EU 2024/1787, Canada SOR/2020-231, and Asia-Pacific national mandates—it meets the growing demand for reliable, portable detection.
An integrated EPC system with temperature compensation guarantees steady flow and consistent performance from -20°C to +50°C.
Built-in Wi-Fi and Bluetooth enable seamless connection to an explosion proof handheld controller running the dedicated LDAR APP for real-time data logging, route management, and cloud synchronization, eliminating post-monitoring file transfers.
Weighing only 3.7 kg with dual detectors including the cylinder, the compact design fits into a standard laptop backpack. Certified IECEx Ex db ia IIC T4 Gb and compliant with EPA Method 21, the analyzer ensures safe operation in hazardous areas (Class I, Zone 1) with robust corrosion-resistant construction for harsh field conditions. Our comprehensive global support and service solutions are available to ensure long-term reliability and low total cost of ownership.
| Parameter | Value/Performance |
| Accuracy | FID: ±10% of reading or ±1.0 ppm, whichever is greater, from 1.0 to 10,000 ppm. PID: ±20% of reading or ±0.5 ppm, whichever is greater, from 0.5 to 500 ppm. |
| Repeatability | FID: <2% at 500 ppm of methane PID: <1% at 100 ppm of isobutylene |
| Linear range | FID: 1–100,000 ppm of methane PID: 0.5–4,000 ppm of isobutylene |
| Response time | FID: <3.5 s for 90% of final value, using 10,000 ppm methane PID: <3.5 s for 90% of final value, using 500 ppm isobutylene |
| Sample flow rate | 1 liter/minute, nominal, at sample probe inlet |
| Battery | ≥10 hours continuous operation (32°F, fully charged) |
| Hydrogen supply operating time | ≥10 hours of continuous operation (hydrogen cylinder, 2200 psi) |
| Physical dimensions | 11" × 8.6" × 3" (280 mm × 219 mm × 76 mm) |
| Weight | FID only: ≤3.5 kg Dual: ≤3.7 kg |
| Minimum detectable limit | FID: 0.5 ppm of methane PID: 0.5 ppm of isobutylene |
| Lamp life | FID: ≥5,000 hours PID: ≥2000 hours |
| Data storage interval | Auto mode: 1 per second to 1 per 999 minutes, user selectable VOC or FE Mode: 2 to 30 seconds, user selectable |
| Relative humidity range | 0–95% RH |
| Temperature range | -20°C to +50°C |
| Explosion-proof rating | IECEx: Ex db ia IIC T4 Gb |
| Note: The EXPEC 3100 Intl is available with FID as standard. The following options can be selected independently based on application needs: ① PID for simultaneous organic/inorganic compound detection; ② Explosion-proof handheld controller for wireless operation and APP-based route management. | |
